Irate Diesel Fuel System 7.3 Powerstroke
Irate Diesel Fuel System 7.3 Powerstroke

Irate Diesel Fuel System 7.3 Powerstroke

Regular price $1,940.00 USD
Regular price Sale price $1,940.00 USD
Tax included.
  • Inventory on the way

Irate Diesel Standard COMPLETE fuel system. 5/8" pickup tube, Parker 801-10 line from tank to IDP 304ss fuel bracket, Baldwin filters NEW IDP BILLET filter base, Fuel Lab fuel pump, 801-8 line to motor, Irate regulated return with Fuelab regulator and liquid filled gauge, 801-6 return line and wiring harness. System is complete  from the tank forward and gets rid of all those pesky fuel bowl leaks and in tank pick-up issues. This system uses a pre pump screen filter that is serviceable before the pump to maximize flow to the pump and prevent starvation at the pump. From there it goes through a water separator filter then the final filter to prevent any contaminants getting to you engine!


This fuel system kit features:

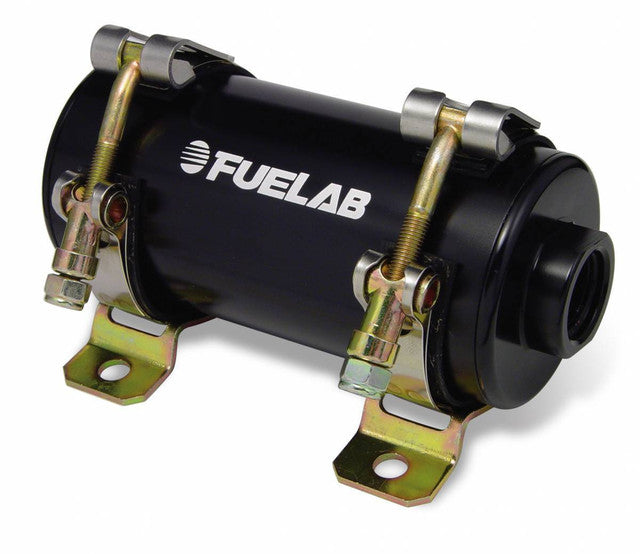

  • Fuel Lab Fuel Pump
  • Regulated Return Kit
  • Baldwin Filters
  • Fuel Bowl Delete Kit
  • 5/8" pickup tube
  • Parker 801-10 line from tank to
  • IDP 304ss fuel bracket Baldwin filters and filter heads
  • 801-8 line to motor
  • Fuelab regulator liquid filled gauge
  • 801-6 return line and wiring harness.
This system will support up to a 250/200 injector or support 550-600RWHP.

In some instances you may have to remove the up-pipe on the drivers side to fit the new supplied 90* fitting.

If you have a Gen3 or Full Force Dual HPOP set up, please let us know in the checkout so we can bend you the correct lines to clear them.
